  • 50Hz/60Hz Switchable Copal Gearbox

    Pictures of the switchable gearbox on a Copal 10-1244-00 motor.

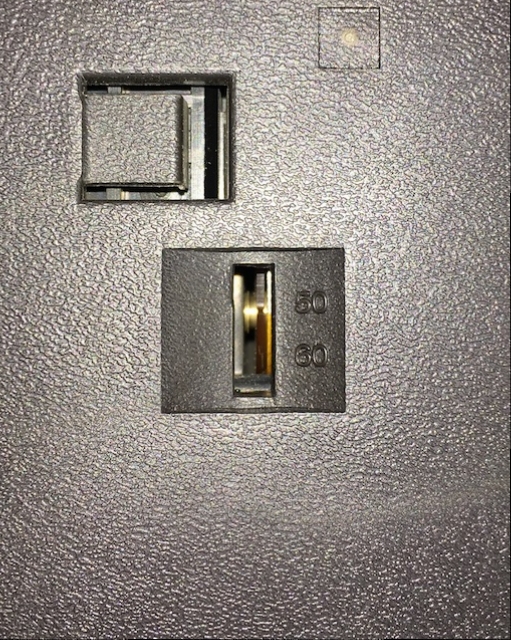

    This is a 1976 Sony ICF-C670W. There is a slot in the bottom of the clock that you can stick a tool in to flip the 50/60 switch on the gearbox.
    There is no voltage switch, it takes standard 120v 60Hz only.
    The copal motor is labeled 10v 60Hz.

    Click image for larger version

Name:	IMG_3490.jpg
Views:	1
Size:	386.5 KB
ID:	2985


    Click image for larger version

Name:	IMG_3472.jpg
Views:	1
Size:	168.9 KB
ID:	2986


    Click image for larger version

Name:	IMG_3491.jpg
Views:	1
Size:	162.2 KB
ID:	2987


    Jeremy


  • #2
    Very interesting. I always wondered if the gearing was accomplished inside or outside if the motor' gearbox.

    ~ Mackey
