    Repaired Garant 5RD021 and Meister Anker 5RD016

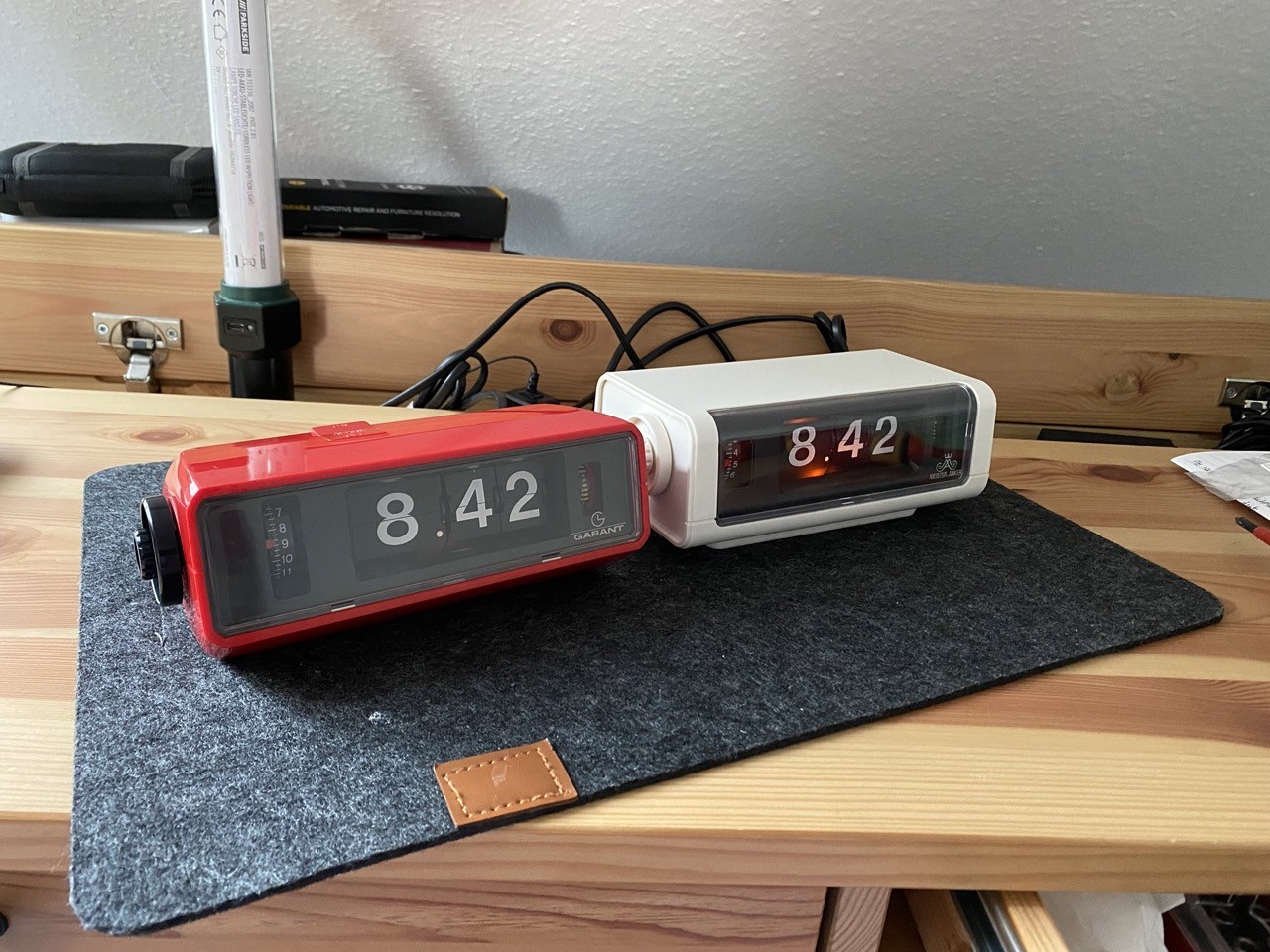

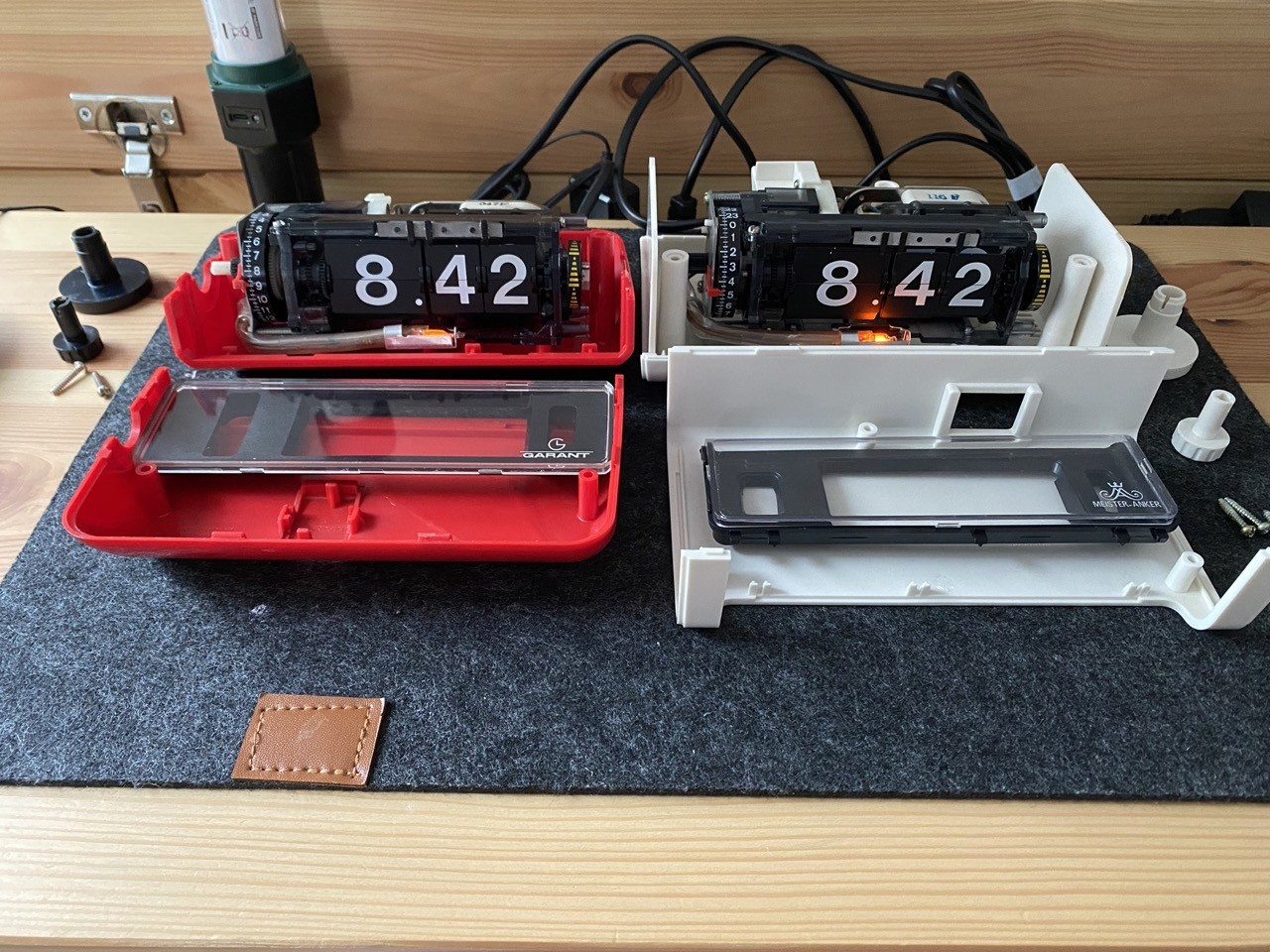

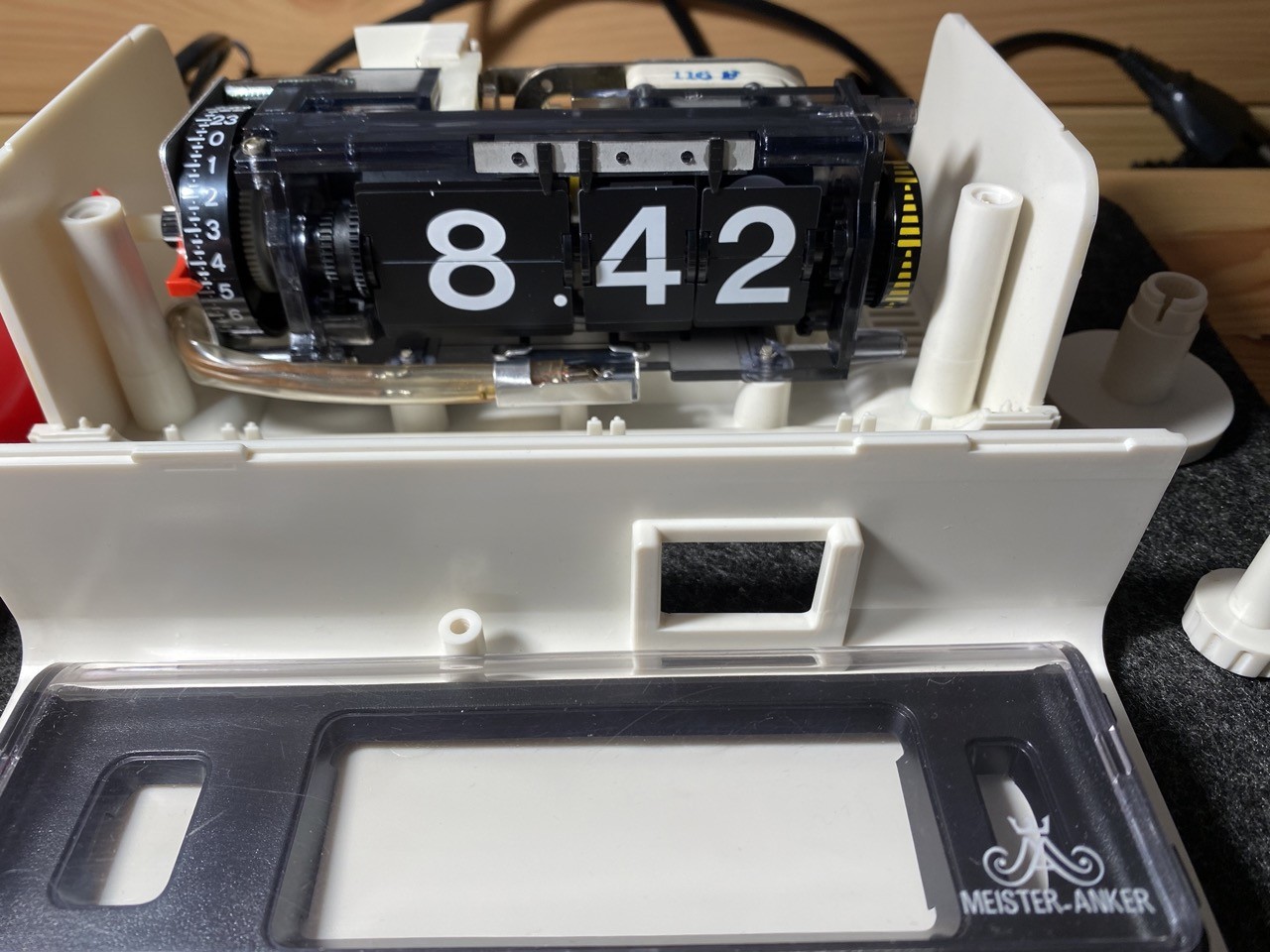

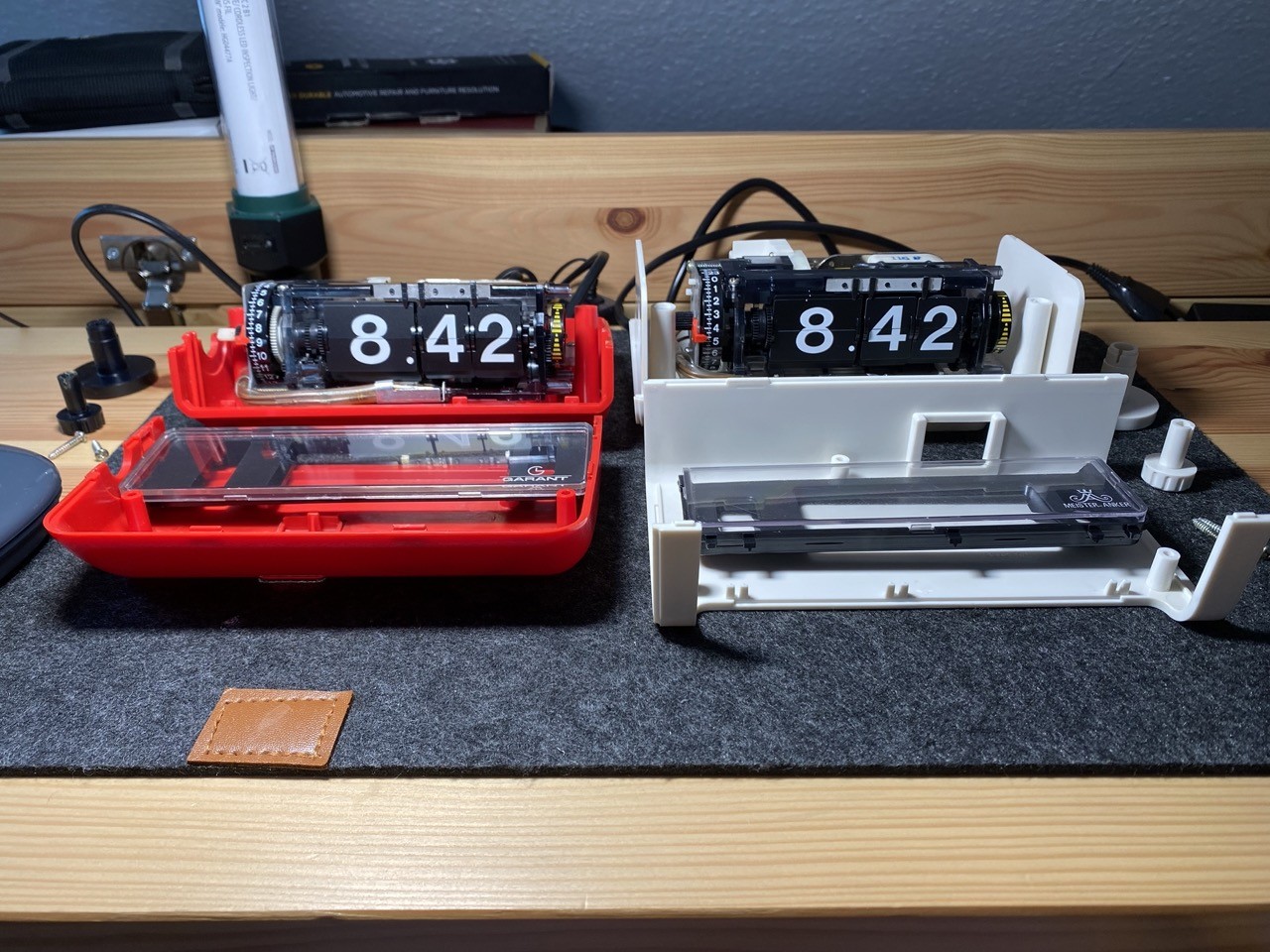

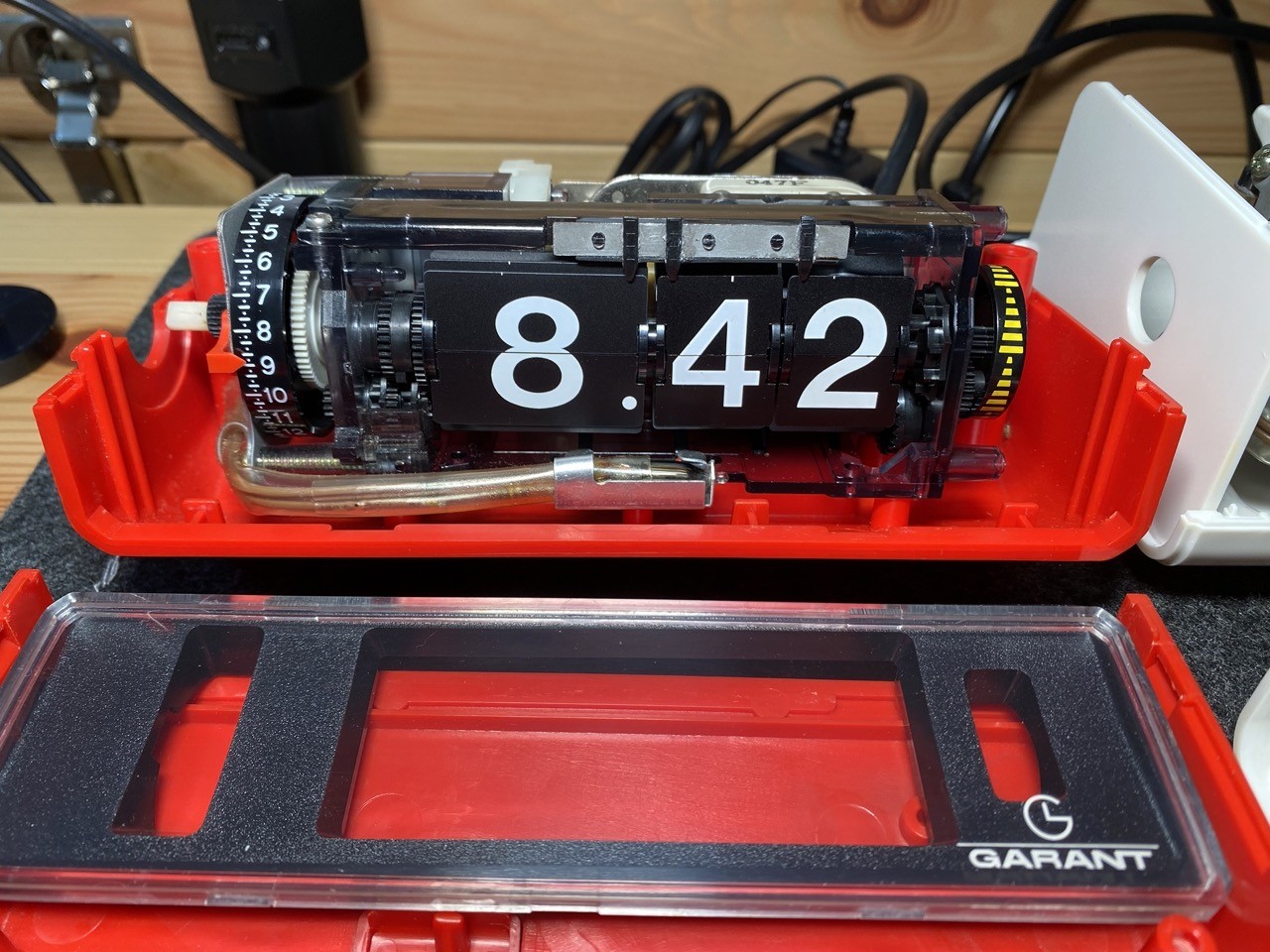

    The Garant 5RD021 and the Meister Anker 5RD016 are almost the same flip-clock with the same problem : the three small plastic that keeps the tiles from falling were broken.

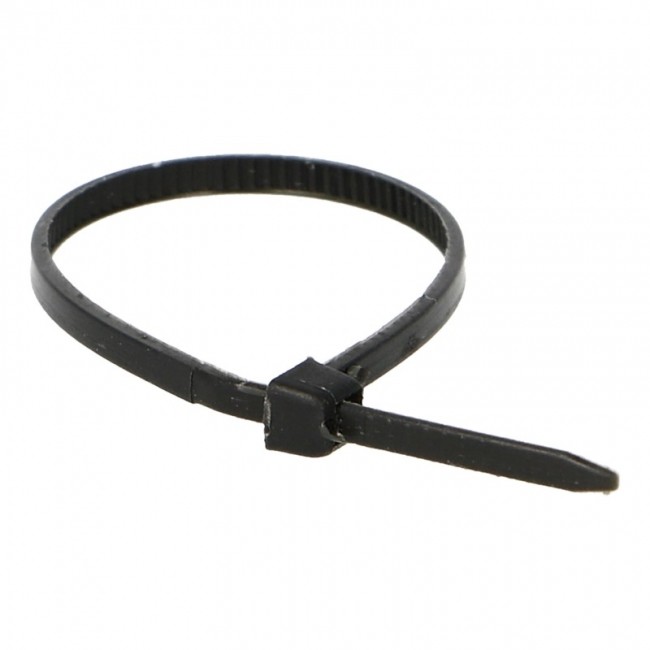

    I had to find a solution to recreate them and I finally decided to cut a part of the smallest serflex I had at home and to glue it.

    It works like a charm and both of the clocks are now working perfectly.

    Click image for larger version

Name:	IMG_2168 Grande.jpg
Views:	163
Size:	317.5 KB
ID:	29379 Click image for larger version

Name:	IMG_2169 Grande.jpg
Views:	146
Size:	301.4 KB
ID:	29380 Click image for larger version

Name:	IMG_2170 Grande.jpg
Views:	147
Size:	219.6 KB
ID:	29381 Click image for larger version

Name:	IMG_2171 Grande.jpg
Views:	144
Size:	363.3 KB
ID:	29382 Click image for larger version

Name:	IMG_2172 Grande.jpg
Views:	144
Size:	317.5 KB
ID:	29383 Click image for larger version

Name:	C_1.jpg
Views:	139
Size:	25.9 KB
ID:	29385
    Attached Files
  • Johan de Jong
    Flip Clock Fan
    • Nov 2020
    • 945
    • Netherlands [NL]

    #2
    That is a common problem with this mechanism. I had the same problem with a Gracia and also first repaired it using the tie-wraps, but found these a bit too stiff. I then changed it to some strips of rubber I had laying around: https://www.flipclockfans.com/forum/...unk-to-gem-ish

    Good looking clocks btw and nice to get a look inside.
    Thanks for sharing!
