    Sankyo 401 and 412 motors

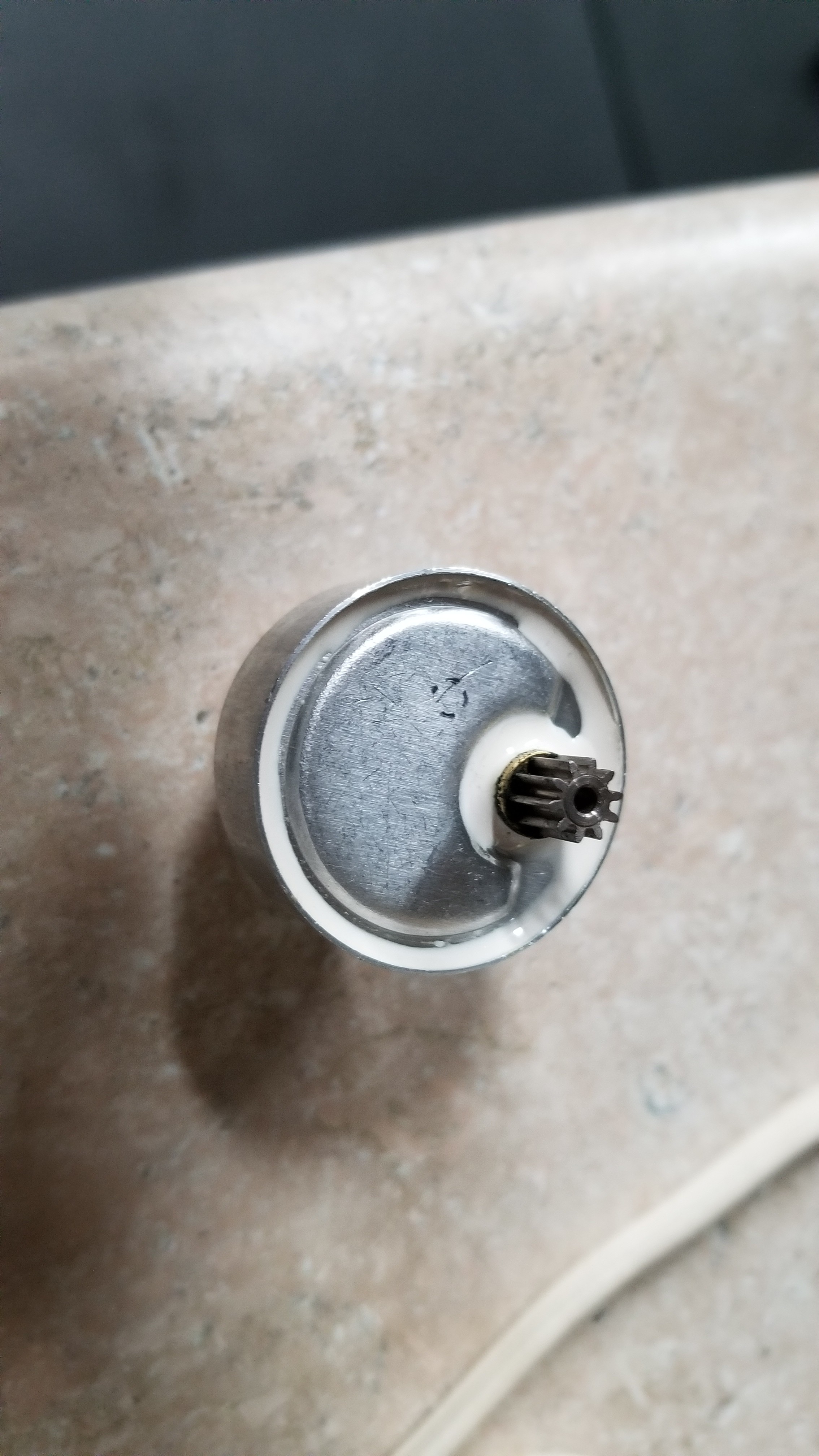

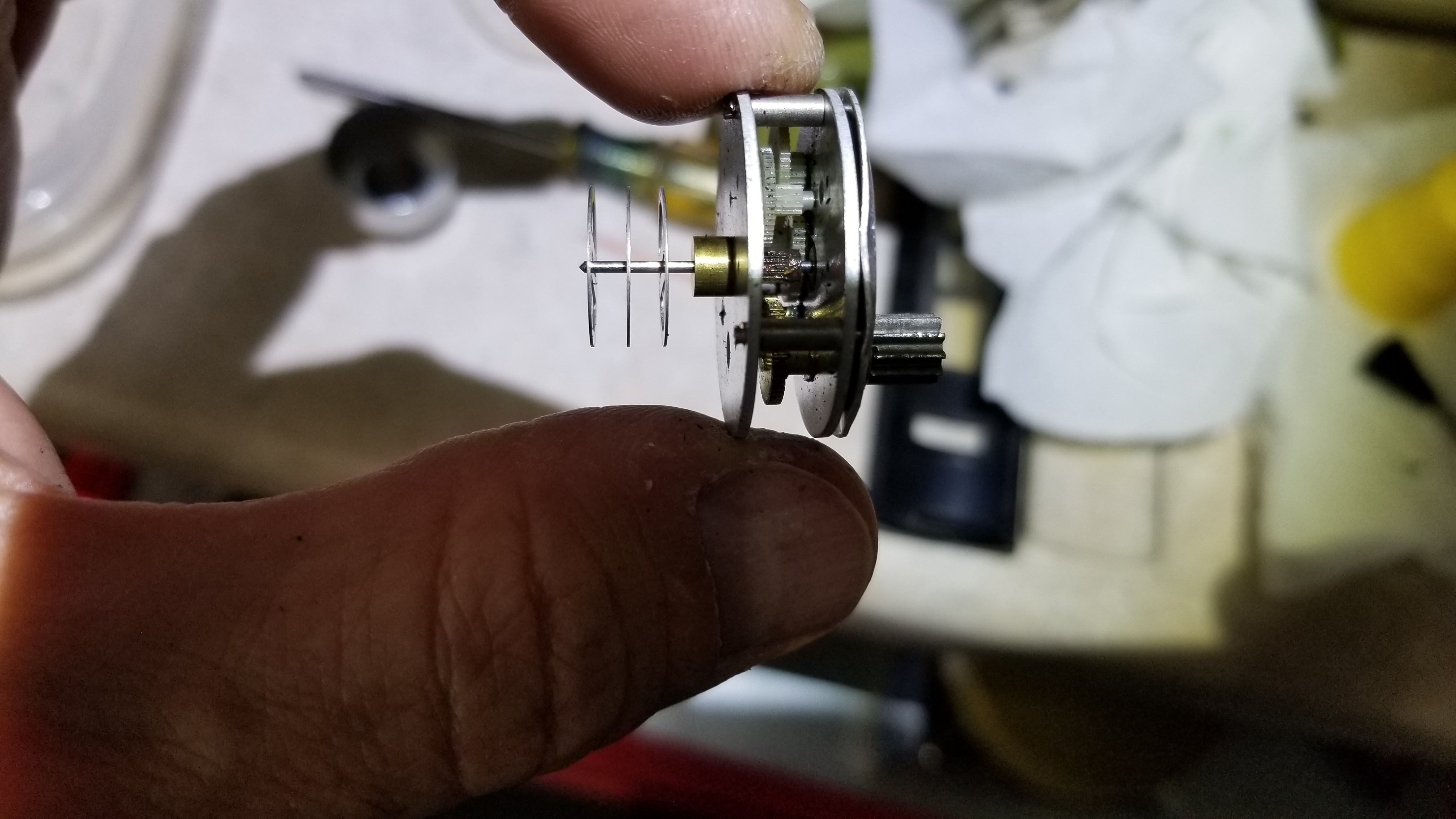

    Good morning, need some help with sankyo 412 and 401 clocks. I have 6 of them that I'm refurbishing. Both models have the telechron motors, number on tag says gbh6b1 and I'm unable to find replacement. I carefully took the motors apart to clean out the dried grease and lubricate with quality clock oil. Only 2 out of 6 have gears in great condition. 4 have the tiny gear for center shaft that has the 3 evenly spaced discs that spin the gears by the magnetism, those tiny gears have deteriorated. Is it possible to get those gears for replacement?
    Attached Files
  • flipoclock
    Flip Clock Fan
    • May 2016
    • 2355

    #2
    That is going to be a tough one, but you can try: www.telechronclock.com

    This man mostly works the American market (hence being 110v/60hz), but possibly also has parts for 220v/50hz?

    Comment

    • jandbwiegman@gmail.com
      New Member
      • Dec 2019
      • 4

      #3
      Yes, I did email that site as well. These sankyo clocks are 110

      Comment

      • flipoclock
        Flip Clock Fan
        • May 2016
        • 2355

        #4
        I am pretty sure that he will be able to supply you with what you need, it will be pricey though :-) But hey, better expensive than not available at all, right?

        Comment

        • Mackey
          Administrator
          • Feb 2014
          • 3693
          • United States [US]

          #5
          I'm really hoping to hear how this plays out.
          ~ Mackey Site Administrator
          If you have any questions/comments Contact Me
          If you're not a member, you should consider joining!

          Comment

          • MuzzaL
            Member
            • Oct 2019
            • 14

            #6
            Originally posted by jandbwiegman@gmail.com
            Good morning, need some help with sankyo 412 and 401 clocks. I have 6 of them that I'm refurbishing. Both models have the telechron motors, number on tag says gbh6b1 and I'm unable to find replacement. I carefully took the motors apart to clean out the dried grease and lubricate with quality clock oil. Only 2 out of 6 have gears in great condition. 4 have the tiny gear for center shaft that has the 3 evenly spaced discs that spin the gears by the magnetism, those tiny gears have deteriorated. Is it possible to get those gears for replacement?
            Just wondering whether, given the above dried grease issue (both with cyclometer and flip-clock motors), should all newly acquired clocks be flushed with IPA (and lubed) as a matter of course? I've recently posted about a slow Artin flip-clock that was fixed with a flush and lube, so I'm beginning to think that I will do this for all my clocks, regardless of whether they appear to be running smoothly or not. What do others do?
