    Tools of the Trade - Getting Started

    I have no previous experience with radio/clock repair, but this is a hobby that I would like to get into. Therefore my obvious question is: What tools should I acquire before starting?
    Thanks in advance. ~ Old School
  • Mackey
    Administrator
    • Feb 2014
    • 3625
    • United States [US]

    #2
    1. Screwdrivers - you need a good selection of sizes (at least Philips head #0, #1 and #2) and sometimes a longer length. I like magnetized screw drivers since little screws drop down where they don't belong.
    2. Side cutters - for cutting wires. I like the smaller types, some that double as wire cutters as well as a cutter to cut back too much soldier. The one below is what I use.
    3. A basic soldiering iron kit with adjustable heat - you don't have to get fancy. There's some good decent starter kits out there.
    4. Thin Jaw adjustable wrench - you will thank me for this one. I love mine. I got it off amazon on a special. It's a little expensive now, but I use the heck out of this.
    5. Electric contact cleaner - I just use a basic kind you can find at Lowes, it's plastic safe. Other people swear by DeOxit

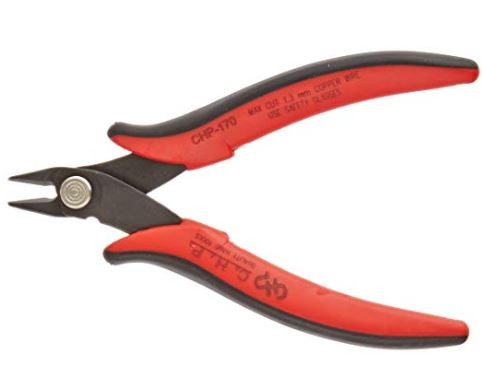

    Click image for larger version  Name:	microcutters.JPG Views:	0 Size:	17.6 KB ID:	9136 2. Micro Cutters Get it on Amazon.com

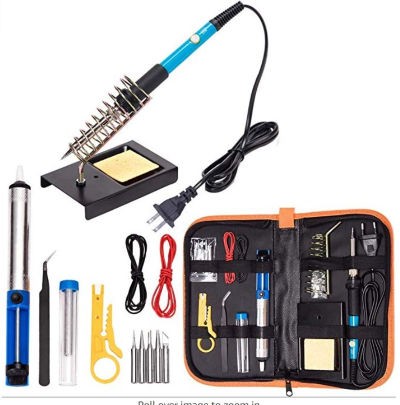

    Click image for larger version  Name:	kit.JPG Views:	0 Size:	39.9 KB ID:	9138 3. Soldiering Iron kit - just an example from Amazon.com

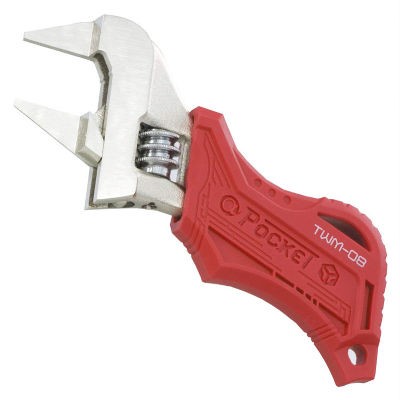

    Click image for larger version  Name:	slimjaw.jpg Views:	0 Size:	19.3 KB ID:	9137 4. Engineer TWM-08 Pocket Sized Thin Jaw Adjustable Angle Wrench - get it on Amazon.com

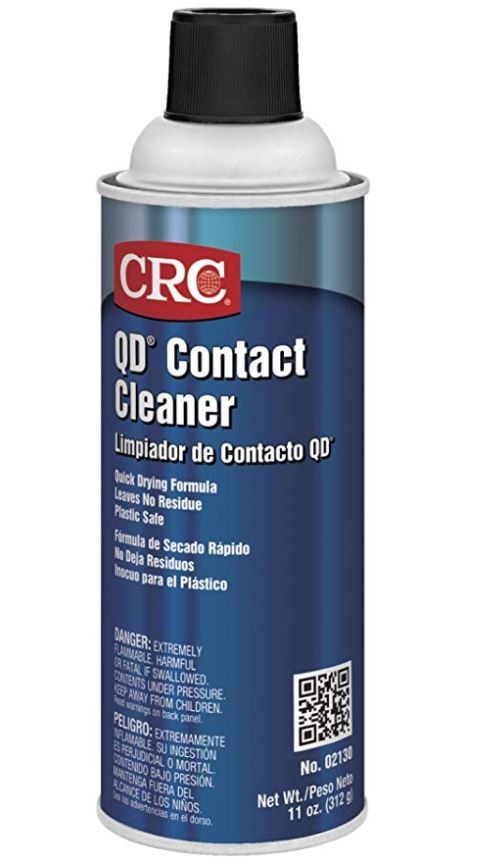

    Click image for larger version  Name:	contact.JPG Views:	0 Size:	56.4 KB ID:	9139 5. CRC contact cleaner (works great for me)

    or

    DeOxit (people swear by this)
    ~ Mackey Site Administrator
    If you have any questions/comments Contact Me
    If you're not a member, you should consider joining!

    Comment

    • Twemcopal
      Senior Member
      • Mar 2018
      • 139

      #3
      And a multimeter.

      As Mackey is saying nothing too fancy. One that can do capacitors too if the budget permits.

      Comment

      • Friendly Scientist
        Senior Member
        • Jun 2019
        • 109

        #4
        Something I would like to add, but totally optional. A magnetic bowl to hold all ye loose screws in as you dig in deeper in your project.

        Also, some alcohol cleaning wipes or bottle of rubbing alcohol. These are good for cleaning the dusty innards and circuit boards but not good for clear plastic.

        And good ole electric tape. Most of times you open up the clock and see that the original factory electric tape may have lost its stickiness after 30-40+ years. Recommend replacing it and cleaning the residue beforehand.

        Best of luck to you and remember to NOT STRESS!!! It's a fun thing to get into and having a patient and calm attitude makes WORLD of a difference!
        "Stupid is as Stupid Does"- Forrest Gump
